Tuercas tensionadoras mecánicas, serie H650TX
Descripción
Tuerca para aplicaciones de temperaturas medianas y espacios reducidos.
Para aplicaciones expuestas a temperatura normal ó mediana y para espacios reducidos. Están lubricados JL-M (H650TX).
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

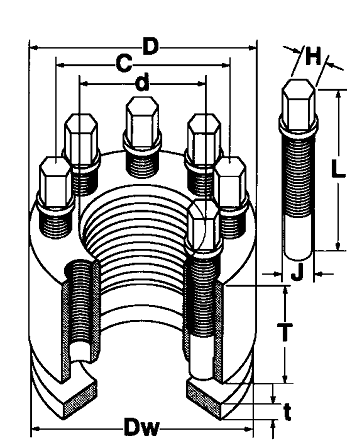

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H650TX-425-.../w | 4.1/4 | 162.6 | 99.1 | 135.4 | 136.7 | 14 | 3/4 | 5/8 | 162.6 | 9.7 | 806,400.0 | 390.0 | 9.6 |
| H650TX-450-.../w | 4.1/2 | 169.2 | 101.6 | 141.7 | 136.7 | 16 | 3/4 | 5/8 | 169.2 | 12.7 | 806,400.0 | 390.0 | 10.0 |
| H650TX-475-.../w | 4.3/4 | 180.3 | 101.6 | 148.1 | 136.7 | 18 | 3/4 | 5/8 | 175.3 | 19.1 | 907,200.0 | 390.0 | 11.8 |
| H650TX-500-.../w | 5 | 188.0 | 101.6 | 154.4 | 136.7 | 20 | 3/4 | 5/8 | 181.9 | 25.4 | 1,100,800.0 | 390.0 | 12.6 |
| H650TX-525-.../w | 5.1/4 | 200.7 | 101.6 | 160.8 | 136.7 | 22 | 3/4 | 5/8 | 188.2 | 31.8 | 1,108,800.0 | 390.0 | 14.4 |
| H650TX-550-.../w | 5.1/2 | 209.6 | 116.8 | 175.1 | 151.9 | 24 | 3/4 | 5/8 | 207.0 | 22.9 | 1,108,800.0 | 390.0 | 17.0 |
| H650TX-575-.../w | 5.3/4 | 223.5 | 116.8 | 189.7 | 151.9 | 26 | 3/4 | 5/8 | 219.7 | 29.2 | 1,209,600.0 | 390.0 | 20.0 |
| H650TX-600-.../w | 6 | 238.8 | 116.8 | 204.2 | 151.9 | 28 | 3/4 | 5/8 | 233.7 | 35.6 | 1,209,600.0 | 390.0 | 23.1 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H650TX-M110-?/w | M110 | 166.0 | 101.0 | 138.0 | 134.0 | 12 | 20.0 | 17.0 | 166.0 | 9.5 | 570,150.0 | 185.0 | 10.5 |
| H650TX-M120-?/w | M120 | 180.0 | 102.0 | 149.0 | 134.0 | 14 | 20.0 | 17.0 | 178.0 | 18.0 | 687,150.0 | 191.0 | 12.2 |
| H650TX-M140-?/w | M140 | 198.0 | 117.0 | 169.0 | 149.0 | 20 | 20.0 | 17.0 | 198.0 | 23.0 | 926,100.0 | 180.0 | 15.7 |
| H650TX-M160-?/w | M160 | 236.0 | 117.0 | 189.0 | 149.0 | 24 | 20.0 | 17.0 | 226.0 | 43.0 | 1,215,900.0 | 197.0 | 20.5 |
