Tuercas tensionadoras mecánicas, serie CY
Descripción
Tuerca de alta resistencia con pernos secundarios hexagonales.
Aplicación: Para ser usados con pernos grado 8 y espárragos de alta precarga. Caben en el mismo espacio que una tuerca pesada.
Ficha Técnica
| Serie Imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

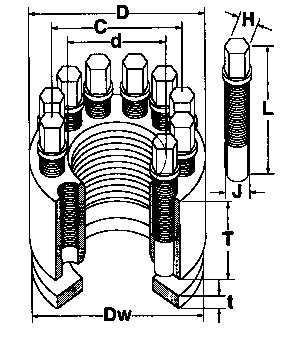

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| CY-075-.../w | 3/4 | 37.3 | 17.8 | 28.8 | 31.8 | 6 | 1/4 | 3/16 | 38.1 | 3.3 | 30,600.0 | 14.0 | 0.1 |
| CY-087-.../w | 7/8 | 43.2 | 17.8 | 32.1 | 31.8 | 8 | 1/4 | 3/16 | 41.4 | 3.3 | 40,800.0 | 14.0 | 0.2 |
| CY-100-?/w | 1 | 48.3 | 23.6 | 37.0 | 38.6 | 6 | 5/16 | 1/4 | 50.8 | 4.8 | 48,600.0 | 27.0 | 0.3 |
| CY-112-?/w | 1.1/8 | 52.8 | 23.6 | 40.3 | 38.6 | 8 | 5/16 | 1/4 | 54.1 | 4.8 | 64,800.0 | 27.0 | 0.3 |
| CY-125-?/w | 1.1/4 | 58.9 | 30.5 | 46.0 | 49.0 | 6 | 5/16 | 1/4 | 60.5 | 4.8 | 73,800.0 | 49.0 | 0.5 |
| CY-137-?/w | 1.3/8 | 62.5 | 30.5 | 48.6 | 49.0 | 8 | 3/8 | 5/16 | 63.5 | 4.8 | 98,400.0 | 49.0 | 0.6 |
| CY-150-?/w | 1.1/2 | 71.1 | 36.1 | 54.1 | 56.9 | 8 | 3/8 | 5/16 | 69.9 | 4.8 | 129,600.0 | 75.0 | 0.9 |
| CY-162-?/w | 1.5/8 | 75.2 | 36.1 | 57.3 | 56.9 | 8 | 3/8 | 5/16 | 73.2 | 4.8 | 129,600.0 | 75.0 | 0.9 |
| CY-175-?/w | 1.3/4 | 81.3 | 36.1 | 60.5 | 56.9 | 12 | 7/16 | 3/8 | 79.5 | 6.4 | 194,400.0 | 75.0 | 1.1 |
| CY-187-?/w | 1.7/8 | 91.2 | 40.6 | 69.7 | 66.0 | 8 | 1/2 | 7/16 | 88.9 | 6.4 | 175,200.0 | 114.0 | 1.6 |
| CY-200-.../w | 2 | 94.0 | 40.6 | 69.7 | 66.0 | 12 | 1/2 | 7/16 | 88.9 | 6.4 | 262,800.0 | 114.0 | 1.7 |
| CY-225-.../w | 2.1/4 | 100.3 | 40.6 | 76.3 | 66.0 | 12 | 1/2 | 7/16 | 95.3 | 6.4 | 262,800.0 | 114.0 | 1.8 |
| CY-250-.../w | 2.1/2 | 113.0 | 58.4 | 87.1 | 90.4 | 12 | 5/8 | 9/16 | 114.3 | 7.9 | 428,400.0 | 233.0 | 3.3 |
| CY-275-.../w | 2.3/4 | 119.4 | 61.0 | 93.7 | 90.4 | 12 | 5/8 | 9/16 | 120.7 | 7.9 | 428,400.0 | 233.0 | 3.5 |
| CY-300-.../w | 3 | 132.1 | 58.4 | 100.3 | 90.4 | 16 | 5/8 | 9/16 | 127.0 | 7.9 | 571,200.0 | 233.0 | 4.4 |
| CY-325-.../w | 3.1/4 | 138.4 | 58.4 | 105.4 | 90.4 | 16 | 5/8 | 9/16 | 127.0 | 7.9 | 571,200.0 | 233.0 | 4.8 |
| CY-350-.../w | 3.1/2 | 144.8 | 61.0 | 111.8 | 90.4 | 18 | 5/8 | 9/16 | 139.7 | 7.9 | 642,600.0 | 233.0 | 5.2 |
| CY-375-.../w | 3.3/4 | 151.1 | 61.0 | 118.1 | 90.4 | 18 | 5/8 | 9/16 | 139.7 | 7.9 | 642,600.0 | 233.0 | 5.2 |
| CY-400-.../w | 4 | 157.5 | 66.0 | 124.5 | 98.6 | 20 | 5/8 | 9/16 | 152.4 | 7.9 | 714,000.0 | 233.0 | 6.1 |
| CY-425-.../w | 4.1/4 | 176.5 | 76.2 | 135.4 | 111.3 | 18 | 3/4 | 5/8 | 162.6 | 9.7 | 907,200.0 | 390.0 | 9.6 |
| CY-450-.../w | 4.1/2 | 182.9 | 76.2 | 141.7 | 111.3 | 18 | 3/4 | 5/8 | 168.9 | 9.7 | 907,200.0 | 390.0 | 10.0 |
| CY-475-.../w | 4.3/4 | 189.2 | 81.3 | 148.1 | 118.9 | 20 | 3/4 | 5/8 | 175.3 | 9.7 | 1,008,000.0 | 390.0 | 10.9 |
| CY-500-.../w | 5 | 195.6 | 83.8 | 154.4 | 118.9 | 20 | 3/4 | 5/8 | 181.6 | 9.7 | 1,008,000.0 | 390.0 | 11.8 |
| CY-525-.../w | 5.1/4 | 201.9 | 94.0 | 167.1 | 126.5 | 22 | 3/4 | 5/8 | 194.3 | 9.7 | 1,100,800.0 | 390.0 | 13.5 |
| CY-550-.../w | 5.1/2 | 201.9 | 94.0 | 167.1 | 126.5 | 22 | 3/4 | 5/8 | 194.3 | 9.7 | 1,100,800.0 | 390.0 | 12.6 |
| CY-575-.../w | 5.3/4 | 214.6 | 101.6 | 179.8 | 136.7 | 24 | 3/4 | 5/8 | 207.0 | 9.7 | 1,209,600.0 | 390.0 | 16.1 |
| CY-600-.../w | 6 | 214.6 | 101.6 | 179.8 | 136.7 | 24 | 3/4 | 5/8 | 207.0 | 9.7 | 1,209,600.0 | 390.0 | 14.8 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| CY-M20-.../w | M20 | 37.0 | 17.0 | 29.0 | 30.0 | 8 | 6.0 | 5.0 | 38.0 | 3.3 | 32,400.0 | 11.0 | 0.1 |
| CY-M24-.../w | M24 | 47.0 | 24.0 | 35.0 | 40.0 | 6 | 8.0 | 6.0 | 48.0 | 4.8 | 48,600.0 | 27.0 | 0.3 |
| CY-M27-.../w | M27 | 50.0 | 24.0 | 39.0 | 40.0 | 8 | 8.0 | 6.0 | 51.0 | 4.8 | 64,800.0 | 27.0 | 0.3 |
| CY-M30-.../w | M30 | 53.0 | 24.0 | 41.0 | 40.0 | 8 | 8.0 | 6.0 | 54.0 | 4.8 | 64,800.0 | 27.0 | 0.3 |
| CY-M33-.../w | M33 | 59.0 | 32.0 | 48.0 | 52.0 | 6 | 10.0 | 8.0 | 61.0 | 4.8 | 77,400.0 | 53.0 | 0.5 |
| CY-M36-.../w | M36 | 66.0 | 32.0 | 51.0 | 52.0 | 8 | 10.0 | 8.0 | 67.0 | 4.8 | 103,200.0 | 53.0 | 0.7 |
| CY-M39-.../w | M39 | 71.0 | 32.0 | 54.0 | 52.0 | 10 | 10.0 | 8.0 | 70.0 | 4.8 | 129,000.0 | 53.0 | 0.7 |
| CY-M42-.../w | M42 | 75.0 | 32.0 | 56.0 | 52.0 | 12 | 10.0 | 8.0 | 73.0 | 4.8 | 154,620.0 | 53.0 | 0.8 |
| CY-M45-.../w | M45 | 81.0 | 38.0 | 62.0 | 62.0 | 8 | 12.0 | 10.0 | 80.0 | 6.4 | 157,200.0 | 98.0 | 1.2 |
| CY-M48-.../w | M48 | 85.0 | 38.0 | 65.0 | 62.0 | 10 | 12.0 | 10.0 | 89.0 | 6.4 | 196,500.0 | 98.0 | 1.3 |
| CY-M52-.../w | M52 | 94.0 | 38.0 | 70.0 | 62.0 | 12 | 12.0 | 10.0 | 89.0 | 6.4 | 235,800.0 | 98.0 | 1.6 |
| CY-M56-.../w | M56 | 97.0 | 38.0 | 76.0 | 62.0 | 12 | 12.0 | 10.0 | 95.0 | 6.4 | 235,800.0 | 98.0 | 1.6 |
| CY-M60-.../w | M60 | 107.0 | 58.0 | 83.0 | 91.0 | 8 | 16.0 | 14.0 | 108.0 | 6.4 | 276,000.0 | 233.0 | 3.0 |
| CY-M64-.../w | M64 | 113.0 | 58.0 | 87.0 | 91.0 | 10 | 16.0 | 14.0 | 114.0 | 8.0 | 357,000.0 | 233.0 | 3.4 |
| CY-M72-.../w | M72 | 119.0 | 58.0 | 94.0 | 91.0 | 12 | 16.0 | 14.0 | 121.0 | 8.0 | 428,400.0 | 233.0 | 3.5 |
| CY-M80-?/w | M80 | 132.0 | 61.0 | 103.0 | 91.0 | 16 | 16.0 | 14.0 | 127.0 | 8.0 | 571,200.0 | 233.0 | 4.4 |
| CY-M90-.../w | M90 | 145.0 | 61.0 | 113.0 | 91.0 | 16 | 16.0 | 14.0 | 140.0 | 8.0 | 571,200.0 | 233.0 | 5.2 |
| CY-M100-?/w | M100 | 157.0 | 61.0 | 123.0 | 91.0 | 16 | 16.0 | 14.0 | 152.0 | 8.0 | 571,200.0 | 233.0 | 6.1 |
| CY-M110-?/w | M110 | 177.0 | 61.0 | 133.0 | 91.0 | 20 | 16.0 | 14.0 | 163.0 | 8.0 | 714,000.0 | 233.0 | 7.8 |
| CY-M120-?/w | M120 | 189.0 | 81.0 | 149.0 | 113.0 | 18 | 20.0 | 17.0 | 175.0 | 10.0 | 1,064,880.0 | 479.0 | 11.3 |
| CY-M140-?/w | M140 | 215.0 | 94.0 | 169.0 | 126.0 | 22 | 20.0 | 17.0 | 201.0 | 10.0 | 1,301,520.0 | 479.0 | 16.6 |
| CY-M160-?/w | M160 | 226.0 | 107.0 | 189.0 | 139.0 | 24 | 20.0 | 17.0 | 220.0 | 10.0 | 1,419,840.0 | 479.0 | 18.7 |
