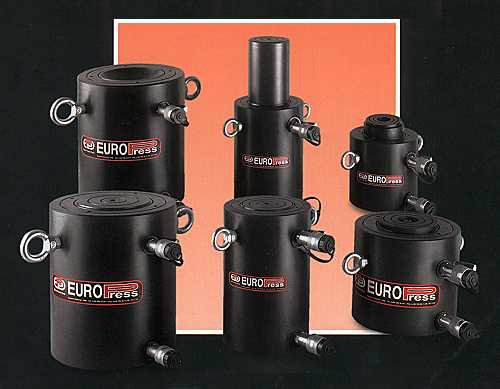

Cilindros hidráulicos de doble efecto
COS:
Su tratamiento nitrurado integral (interno y externo) los protegen de la corrosión y los recomienda para todos los trabajos en ambientes difíciles, aún debajo del agua ó en la industria química y petrolera. Todos los modelos son hechos de una pieza sólida, sin soldaduras, y vienen suministrados con dos conecciones 3/8" NPT, acopladas con conectores rápidos ADG70F y válvula de sobrepresión, además de protectores y pernos de transporte. Los cilindros de esta serie trabajan con cargas excéntricas de hasta 8% de la carga nominal. En caso de usar estos cilindros en prensas, han de ser fijados mediante los agujeros "R" del fondo.
| Modelo | Ce N | Ce E | Cj N | Cj E | S | S E | VdA |

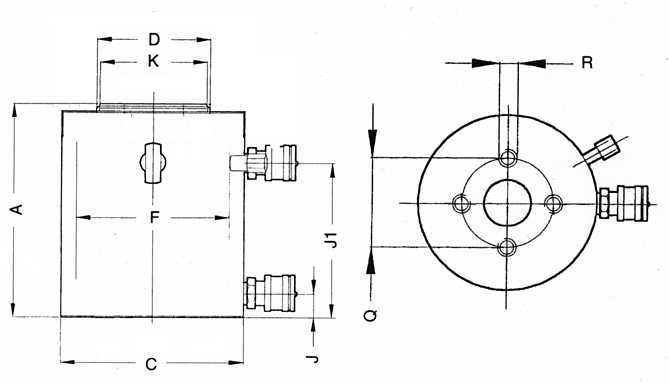

Dimensiones en mm |
Peso | ||||||||||
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS05001 | 50.0 | 496.0 | 15.0 | 144.0 | 25.0 | 177.0 | 52.0 | 124.0 | 148.0 | 130.0 | 125.0 | 95.0 | 80.0 | 78.0 | 20.0 | 86.0 | 95.0 | M12 | 11.4 |
| COS05002 | 50.0 | 496.0 | 15.0 | 144.0 | 50.0 | 354.0 | 104.0 | 149.0 | 174.0 | 155.0 | 125.0 | 95.0 | 80.0 | 78.0 | 20.0 | 111.0 | 95.0 | M12 | 13.5 |
| COS05004 | 50.0 | 496.0 | 15.0 | 144.0 | 100.0 | 709.0 | 206.0 | 199.0 | 223.0 | 204.0 | 125.0 | 95.0 | 80.0 | 78.0 | 20.0 | 161.0 | 95.0 | M12 | 17.5 |
| COS05006 | 50.0 | 496.0 | 15.0 | 144.0 | 150.0 | 1,063.0 | 310.0 | 249.0 | 273.0 | 254.0 | 125.0 | 95.0 | 80.0 | 78.0 | 20.0 | 211.0 | 95.0 | M12 | 21.5 |
| COS10001 | 100.0 | 929.0 | 39.0 | 379.0 | 25.0 | 332.0 | 135.0 | 146.0 | 178.0 | 153.0 | 168.0 | 130.0 | 100.0 | 97.0 | 28.0 | 99.0 | 130.0 | M12 | 24.6 |
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS10002 | 100.0 | 929.0 | 39.0 | 379.0 | 50.0 | 665.0 | 270.0 | 171.0 | 203.0 | 178.0 | 168.0 | 130.0 | 100.0 | 97.0 | 28.0 | 124.0 | 130.0 | M12 | 27.9 |
| COS10004 | 100.0 | 929.0 | 39.0 | 379.0 | 100.0 | 1,325.0 | 540.0 | 221.0 | 253.0 | 228.0 | 168.0 | 130.0 | 100.0 | 97.0 | 28.0 | 174.0 | 130.0 | M12 | 34.5 |
| COS10006 | 100.0 | 929.0 | 39.0 | 379.0 | 150.0 | 1,990.0 | 810.0 | 271.0 | 303.0 | 278.0 | 168.0 | 130.0 | 100.0 | 97.0 | 28.0 | 224.0 | 130.0 | M12 | 41.1 |
| COS10008 | 100.0 | 929.0 | 39.0 | 379.0 | 200.0 | 2,655.0 | 1,085.0 | 321.0 | 353.0 | 328.0 | 168.0 | 130.0 | 100.0 | 97.0 | 28.0 | 274.0 | 130.0 | M12 | 47.7 |
| COS15002 | 150.0 | 1,407.0 | 63.0 | 615.0 | 50.0 | 1,005.0 | 440.0 | 192.0 | 234.0 | 201.0 | 208.0 | 160.0 | 120.0 | 114.0 | 30.0 | 131.0 | 130.0 | M12 | 47.8 |
| COS15004 | 150.0 | 1,407.0 | 63.0 | 615.0 | 100.0 | 2,010.0 | 880.0 | 242.0 | 284.0 | 251.0 | 208.0 | 160.0 | 120.0 | 114.0 | 30.0 | 181.0 | 130.0 | M12 | 57.8 |
| COS15006 | 150.0 | 1,407.0 | 63.0 | 615.0 | 150.0 | 3,015.0 | 1,320.0 | 292.0 | 334.0 | 301.0 | 208.0 | 160.0 | 120.0 | 114.0 | 30.0 | 231.0 | 130.0 | M12 | 67.7 |
| COS15008 | 150.0 | 1,407.0 | 63.0 | 615.0 | 200.0 | 4,020.0 | 1,760.0 | 342.0 | 384.0 | 351.0 | 208.0 | 160.0 | 120.0 | 114.0 | 30.0 | 281.0 | 130.0 | M12 | 77.7 |
| COS15010 | 150.0 | 1,407.0 | 63.0 | 615.0 | 250.0 | 5,025.0 | 2,200.0 | 392.0 | 434.0 | 401.0 | 208.0 | 160.0 | 120.0 | 114.0 | 30.0 | 331.0 | 130.0 | M12 | 87.6 |
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS20002 | 200.0 | 1,984.0 | 76.0 | 747.0 | 50.0 | 1,420.0 | 535.0 | 206.0 | 257.0 | 215.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 142.0 | 140.0 | M16 | 73.8 |
| COS20004 | 200.0 | 1,984.0 | 76.0 | 747.0 | 100.0 | 2,835.0 | 1,070.0 | 256.0 | 307.0 | 265.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 192.0 | 140.0 | M16 | 88.6 |
| COS20006 | 200.0 | 1,984.0 | 76.0 | 747.0 | 150.0 | 4,255.0 | 1,600.0 | 306.0 | 357.0 | 315.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 242.0 | 140.0 | M16 | 103.4 |
| COS20008 | 200.0 | 1,984.0 | 76.0 | 747.0 | 200.0 | 5,670.0 | 2,135.0 | 356.0 | 407.0 | 365.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 292.0 | 140.0 | M16 | 118.2 |
| COS20010 | 200.0 | 1,984.0 | 76.0 | 747.0 | 250.0 | 7,090.0 | 2,670.0 | 406.0 | 457.0 | 415.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 342.0 | 140.0 | M16 | 133.0 |
| COS20012 | 200.0 | 1,984.0 | 76.0 | 747.0 | 300.0 | 8,505.0 | 3,205.0 | 456.0 | 507.0 | 465.0 | 248.0 | 190.0 | 150.0 | 144.0 | 32.0 | 392.0 | 140.0 | M16 | 147.8 |
| COS25002 | 250.0 | 2,424.0 | 85.0 | 835.0 | 50.0 | 1,730.0 | 595.0 | 222.0 | 277.0 | 231.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 153.0 | 150.0 | M16 | 93.4 |
| COS25004 | 250.0 | 2,424.0 | 85.0 | 835.0 | 100.0 | 3,465.0 | 1,195.0 | 272.0 | 327.0 | 281.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 203.0 | 150.0 | M16 | 110.9 |
| COS25006 | 250.0 | 2,424.0 | 85.0 | 835.0 | 150.0 | 5,195.0 | 1,790.0 | 322.0 | 377.0 | 331.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 253.0 | 150.0 | M16 | 128.4 |
| COS25008 | 250.0 | 2,424.0 | 85.0 | 835.0 | 200.0 | 6,930.0 | 2,390.0 | 372.0 | 427.0 | 381.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 303.0 | 150.0 | M16 | 145.9 |
| COS25010 | 250.0 | 2,424.0 | 85.0 | 835.0 | 250.0 | 8,660.0 | 2,985.0 | 422.0 | 477.0 | 431.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 353.0 | 150.0 | M16 | 163.4 |
| COS25012 | 250.0 | 2,424.0 | 85.0 | 835.0 | 300.0 | 10,390.0 | 3,580.0 | 472.0 | 527.0 | 481.0 | 268.0 | 210.0 | 170.0 | 164.0 | 32.0 | 403.0 | 150.0 | M16 | 180.9 |
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS30002 | 300.0 | 2,908.0 | 94.0 | 923.0 | 50.0 | 2,075.0 | 660.0 | 228.0 | 283.0 | 237.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 155.0 | 170.0 | M16 | 118.4 |
| COS30004 | 300.0 | 2,908.0 | 94.0 | 923.0 | 100.0 | 4,155.0 | 1,320.0 | 278.0 | 333.0 | 287.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 205.0 | 170.0 | M16 | 140.4 |
| COS30006 | 300.0 | 2,908.0 | 94.0 | 923.0 | 150.0 | 6,235.0 | 1,980.0 | 328.0 | 383.0 | 337.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 255.0 | 170.0 | M16 | 162.4 |
| COS30008 | 300.0 | 2,908.0 | 94.0 | 923.0 | 200.0 | 8,310.0 | 2,640.0 | 378.0 | 433.0 | 387.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 305.0 | 170.0 | M16 | 184.4 |
| COS30010 | 300.0 | 2,908.0 | 94.0 | 923.0 | 250.0 | 10,390.0 | 3,300.0 | 428.0 | 483.0 | 437.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 355.0 | 170.0 | M16 | 206.4 |
| COS30012 | 300.0 | 2,908.0 | 94.0 | 923.0 | 300.0 | 12,465.0 | 3,960.0 | 478.0 | 533.0 | 487.0 | 297.0 | 230.0 | 190.0 | 184.0 | 37.0 | 405.0 | 170.0 | M16 | 228.4 |
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS40002 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 50.0 | 2,865.0 | 785.0 | 242.0 | 310.0 | 254.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 160.0 | 230.0 | M16 | 172.8 |
| COS40004 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 100.0 | 5,725.0 | 1,570.0 | 292.0 | 360.0 | 304.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 210.0 | 230.0 | M16 | 203.7 |
| COS40006 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 150.0 | 8,590.0 | 2,355.0 | 342.0 | 410.0 | 354.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 260.0 | 230.0 | M16 | 234.6 |
| COS40008 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 200.0 | 11,450.0 | 3,140.0 | 392.0 | 460.0 | 404.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 310.0 | 230.0 | M16 | 265.5 |
| COS40010 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 250.0 | 14,315.0 | 3,925.0 | 442.0 | 510.0 | 454.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 360.0 | 230.0 | M16 | 296.3 |
| COS40012 | 400.0 | 4,007.0 | 112.0 | 1,099.0 | 300.0 | 17,180.0 | 4,710.0 | 492.0 | 560.0 | 504.0 | 347.0 | 270.0 | 230.0 | 224.0 | 42.0 | 410.0 | 230.0 | M16 | 327.3 |
| T | (kN) | t | (kN) | mm | cm3 | cm3 | A | A1 | A2 | C | F | D | K | J | J1 | Q | R | kg | |
| COS50002 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 50.0 | 3,535.0 | 1,080.0 | 250.0 | 318.0 | 262.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 165.0 | 250.0 | M16 | 230.9 |
| COS50004 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 100.0 | 7,070.0 | 2,160.0 | 300.0 | 368.0 | 312.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 215.0 | 250.0 | M16 | 270.5 |
| COS50006 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 150.0 | 10,600.0 | 3,240.0 | 350.0 | 418.0 | 362.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 265.0 | 250.0 | M16 | 310.1 |
| COS50008 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 200.0 | 14,140.0 | 4,320.0 | 400.0 | 468.0 | 412.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 315.0 | 250.0 | M16 | 349.7 |
| COS50010 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 250.0 | 17,650.0 | 5,400.0 | 450.0 | 518.0 | 462.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 365.0 | 250.0 | M16 | 389.3 |
| COS50012 | 500.0 | 4,948.0 | 154.0 | 1,511.0 | 300.0 | 21,205.0 | 6,480.0 | 500.0 | 568.0 | 512.0 | 395.0 | 300.0 | 250.0 | 244.0 | 47.0 | 415.0 | 250.0 | M16 | 428.9 |
